20-key 3x4A RF Wireless Remote RGB Led Controller
- Product Description
20-key 3x4A RF Wireless Remote RGB Led Controller
Product Description:
Product Description:This FR touch remote control RGB controller adopted the advanced touch technology,Mainly used to control all kinds of constant volage led products, such as LED source,flexible strip, wall washer, glass curtain wall light and so on.User can choose different changing mode, adjust the speed and brightness,turn on/off by the remote control according to their preference .This controller is with power off memory function, next time to used it, will start with the model it save.Its built-in kinds of static color, jump, fade, strobe,flow, automatic cycle and others effect.Agile wiring, easy connection and simple to used is the representative advantages of this controller.Technical Parameters:
Controller:
1. Working temperature:-30℃~+60℃
2. Supply Voltage:DC5V/DC 12V-24V,
3. Output:3 channels N-MOS Drain open output
4. onnection mode:common anode
5. Static power consumption:<0.5W
6. Output current: 4A*3Ch=30A 10A(Each channel)
7. controller dimension:L128×W64×H24mm
8. Net Weight:100g
9.Gross Weight:150g
Remote Control:
1. Working temperature:-30℃~+60℃
2. Power supply mode:2pcs NO.7 Battery
3. Supply voltage:3V
4. Static power consumption:<0.09mW
5. Static current:10uA
6. Operating current:15mA
7. Remote-controlled distance:>20M
Stand-by time:6 months
Notes:
1. The use of power and load voltage, current, power must be consistent with the product.

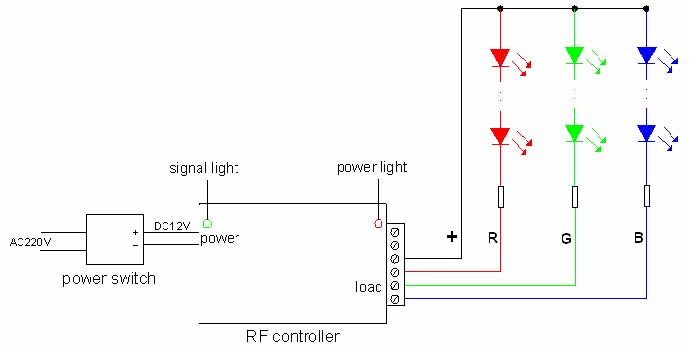

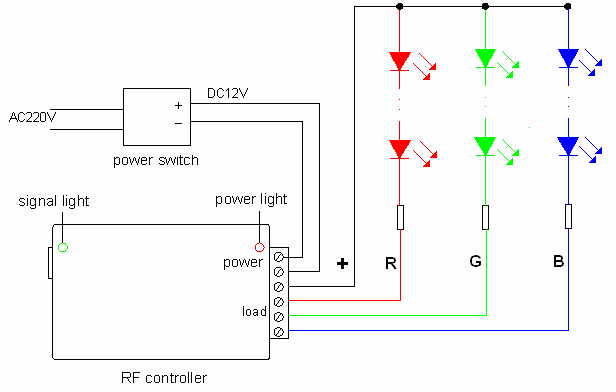

2. Please make the connection like the diagram above(to connect the load wire first, than to connect with the power),
In the process of operation please avoid short circuit.
3. This product warranty is 12 month,But not including the damage by people and other reason caused by over load
working.
* Typical Applications
1,
2,
