8A 3 Keys LED Strip Light Dimmer Controller With Base For 3528 5050 Single Color Strip

*Summarization
Dimmer is a controller that it can adjust brightness infinitely,its control mode is knob-operated control, you could adjust light to the appropriate lighting brightness in accordance with your actual need.

*Technical Parameters
● working temperature: -20-60 ℃
● supply voltage: DC5V, 12V , 24V < optional > ( supply voltage should be marked on order )
● output: 1 channel
● net weight: 100g
● gross weight: 130g
● external dimension: L110 Χ W56 Χ H34 mm
● packing size: L122 Χ W85 Χ H42mm
● rated load current: <8A
● output power: 5V<40W,12V<96W,24V<192W

* Direction for use

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2. Adopt wireless control,its function as follows:
△key is for increasing brightness,
▽key is for reducing brightness.

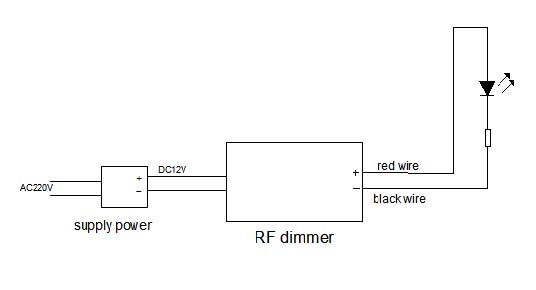

* Typical Applications
